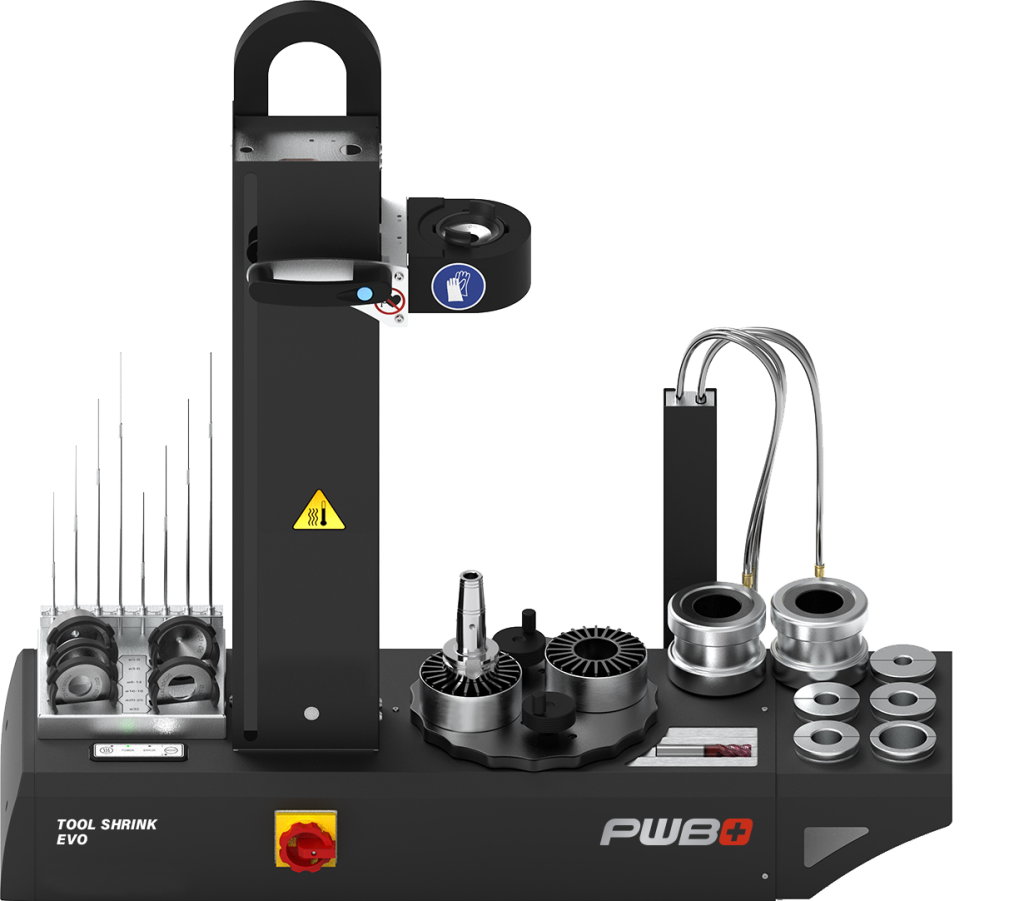

Tool Shrink Evo

The most efficient shrink-fit device in its class.

Experience maximum speed, uncompromising safety, and absolute flexibility – perfectly tailored for HSS and solid carbide tools. With individual, customized heating programs, TOOL SHRINK EVO takes your processes to the next level: faster, more precise, smarter.

  • Suitable for all tool diameters from Ø 3 – 32 mm
  • User-friendly touch keypad control
  • Smart Inductor technology – optimized heating cycle prevents overheating while minimizing energy consumption
  • Extended tool holder service life through fully automated shrink cycles
  • Ergonomically designed for enhanced operational safety
  • Reduced setup costs and minimized downtime during tool changes
  • Shrinking / expansion time: approx. 2 – 7 seconds (depending on tool diameter)
  • Cooling time: 40+ seconds (depending on tool diameter)
  • Rotary table with 2 positions for increased efficiency
  • EVO Pi interface for advanced system integration
  • Integrated online support interface
  • Stop rods for tool height adjustment
  • 5 ferrites
  • 2 cooling bells
  • 1 pair of protective gloves
  • 1 pair of pliers
  • Accessories: cooling holders SK | HSK | Capto
  • Air-power cooling
  • Water cooling unit complete (EU/US)
    • 2 Cooling collars
    • Extension table for the cooling collars and bushes
    • Connection directly to the TOOL SHRINK EVO (EU) or separately (US)
    • Accessories: cooling adapters
  • Adapter positioning rings for SK|BT|CAT 30 & C3|C5|C8
  • Tool-holder air-cooling-box
  • Easy height
  • Cabinet support
4 warranty extension

technical Data

Tool Shrink Evo
POWER CONSUMPTION kW 7-15
DIAMETER RANGE mm For all tools from Ø 3 to 32
SHRINK TIME s 2 - 7 (depending on tool diameter)
MAX SHRINK LENGTH mm 430 to 490
MAX MACHINE INTERFACE HSK-A125
DIMENSIONS mm 317 x 943 x 920 (B x T x H)
WEIGHT kg 50
DELIVERY CONTENT 8 Tool height adjustment stop rods
5 standard heat focusing stoppers
2 Cooling cones
1 Pair of Gloves
1 Pair of Pliers
EVO Pi-Interface
Online Support Interface
2.50 m Power Cable
ACCESSORIES Cooling adapters SK | HSK | Capto
CONNECTIONS EU AC 3 Phase 400 V (+/-10%) + PE/23.8 A/50-60 Hz
AC 3 Phase 400 V (+/-10%) + PE + N/23.8 A/50-60 Hz

US AC 3 Phase 440-480 V + GND /23.8 A/50-60 Hz

For other voltage supply a transformer is required (transformer ordered separately)

Input voltage: 3 x 208 / 240 / 480 / 600 VAC + GND/28 A/50-60 Hz
Output voltage: AC 3 x 400 V + PE + N/28 A/50-60 Hz

Air pressure: 3 to 6 bar / hose diameter 10 mm required
Cooling Unit (optional)
COOLING TIME s 40+ (depending on tool diameter and cooling method)
EXTENSION TABLE Storage of Cooling collars and adapters
DIMENSIONS mm 314 x 630 x 285 (W x D x H)
WEIGHT kg 35
DELIVERY CONTENT Cooling unit
2 Cooling collars
Extension table
Accessories: Cooling bush
CONNECTIONS EU- Directly into the specific plug on the shrink device
US- The cooling unit is connected separately
